Description
Cooling / Heating / High temperature water production even for eventual DHW production
High efficiency even with partial loads
Processed water temperature 73 °C
Takes full advantage of free-heating for simultaneous hot and cold production

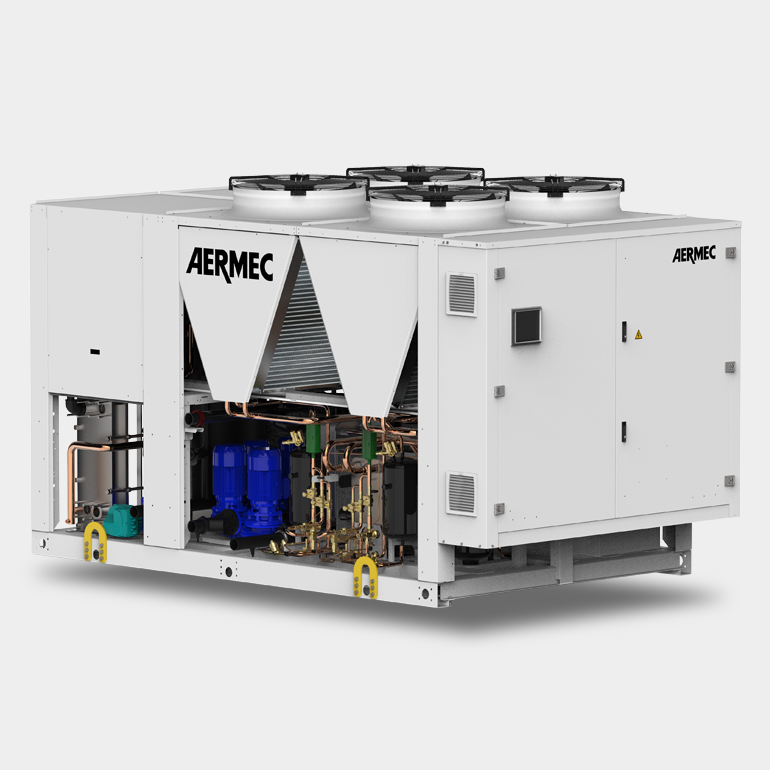

Air-water multifunction unit for outdoor installation. Suitable for the simultaneous but independent production of cold, hot and domestic hot water.
- Cooling capacity: 164.2 ÷ 491.1 kW
- Heating capacity: 175.6 ÷ 504.3 kW
- R410A refrigerant
- R134a refrigerant
- Multipurpose
- Scroll compressor
- Axial fan
- Plate exchanger
- Pump kit (Option)
- Network operation (Option)
- Compatible with ModBus protocol (Option)
- Compatible with VMF system (Variable Multi Flow) (Option)
- Internet connection (Option)
Specifications
The CPS multi-purpose units, made by optimising the system connection between an NRP 4-pipe multi-purpose air-water unit and a WWB water-water heat pump at extremely high temperatures, are designed to meet the needs of residential buildings and accommodation facilities that require the simultaneous availability of heating and cooling plus high-temperature water (up to 73°C on leaving the machine) for heating and/or DHW production. These units can also be used in various types of industrial process. They consist of 4 cooling circuits, 2 circuits (C1/C2) with R410A gas, 2 circuits (C2/C3) with R134a gas, and 3 plate heat exchangers (1 for chilled water, 1 for hot water at medium temperature and 1 in examinable stainless steel for hot water at high temperature – DHW). The base, structure and panels are made of galvanised steel treated with RAL 9003 polyester paints.
