Description

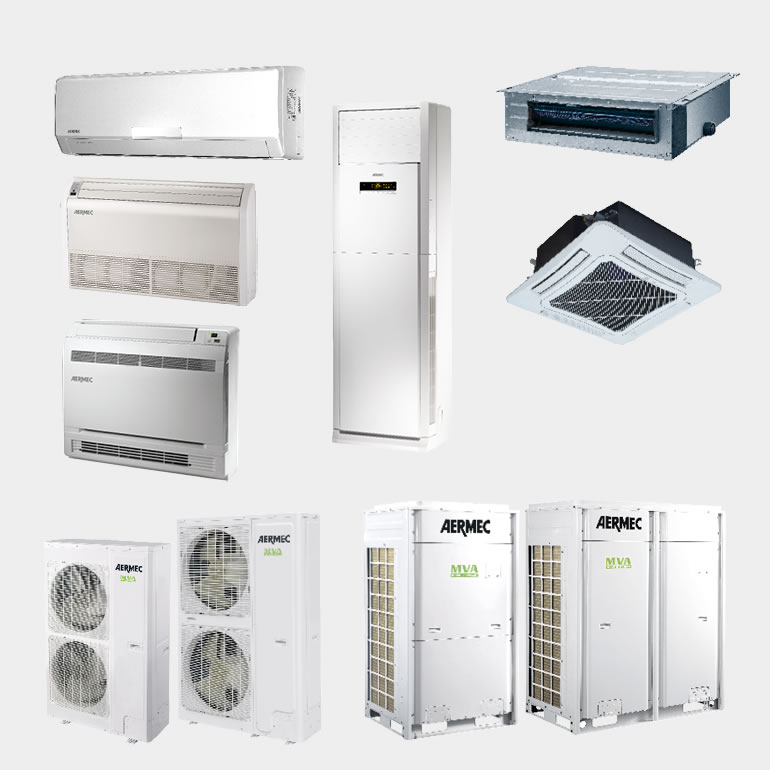

VRF system with DC inverter technology in modular heat pump version. Numerous possible combinations of indoor units: Cassette, Floor-Ceiling, Low-head and High-head Ducted, Console, Wall.
- Cooling capacity: 12.1 ÷ 246 kW
- Heating capacity: 14 ÷ 276 kW
- R410A refrigerant
- Cooling and heating
- Inverter rotary compressor
- Floor installation
- Ducted installation
- Ceiling installation
- For two pipes plants
- For three pipes plants
Specifications
VRF system with R410a gas and condensation control, consisting of 1-4 outdoor units and, depending on the size and the number of outdoor modules, 2-80 indoor units of the following types: Cassette 600×600, 840×840, 910×910 (false ceiling installation), Floor-Ceiling (wall or ceiling installation), Low-head Ducted or High-head Ducted (horizontal installation), Console (floor installation), Wall (wall installation). The outdoor unit uses DC inverter technology on both the fans and the compressors. The compressors are the scroll type. The cooling connections are made with “Y” joints (supplied as obligatory accessories). System operation is managed via microprocessor adjustment on non-polarised serial in CAN BUS protocol. The wired panel and infrared remote control are always supplied as standard with the indoor unit. A centralised controller is also available.
